Turcon Stepseal 2K -OG HYDRAULIC PISTON SEALING SET -Merkel Omegat OMK-E

1．Name: GSD

Categories: Piston Seals->GSD

Pressure(MPa):60

Temperature (C): -45/+200

Speed(m/s):15

2．Standard Materials

Seal Ring:Filled PTFE

O-Ring: NBR, FKM

3. Application Range

For reciprocated hydraulic system. Possessing excellent performance in high and low pressure and high frequency conditions. Suitable for long and short stroke. Applied to bigger rod diameter in fluids and under high pressure, for example: bulldozers, compressors and other machine tools, etc.

In line with standard ISO 7425/1. Design and apply please referring to Trelleborg’s PS, Merkel’s OMK-S, Parker’s OG, AS’s YAB series standards.

4. Characteristics

1- high extrusion resistance

2- high static and dynamic sealing effect

3- excellent dimensional stability, not affected by temperature

4- excellent cushion performance to high stamping force

5- no confining pressure, can be installed in series

6- low friction, no stick-slip behavior, no viscosity

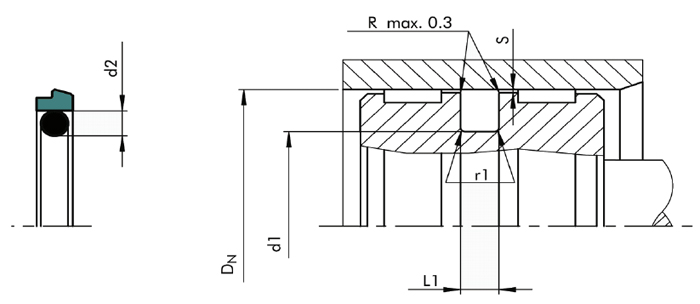

7- simple groove design

8- strong in corrosion resistance

9- long service life
